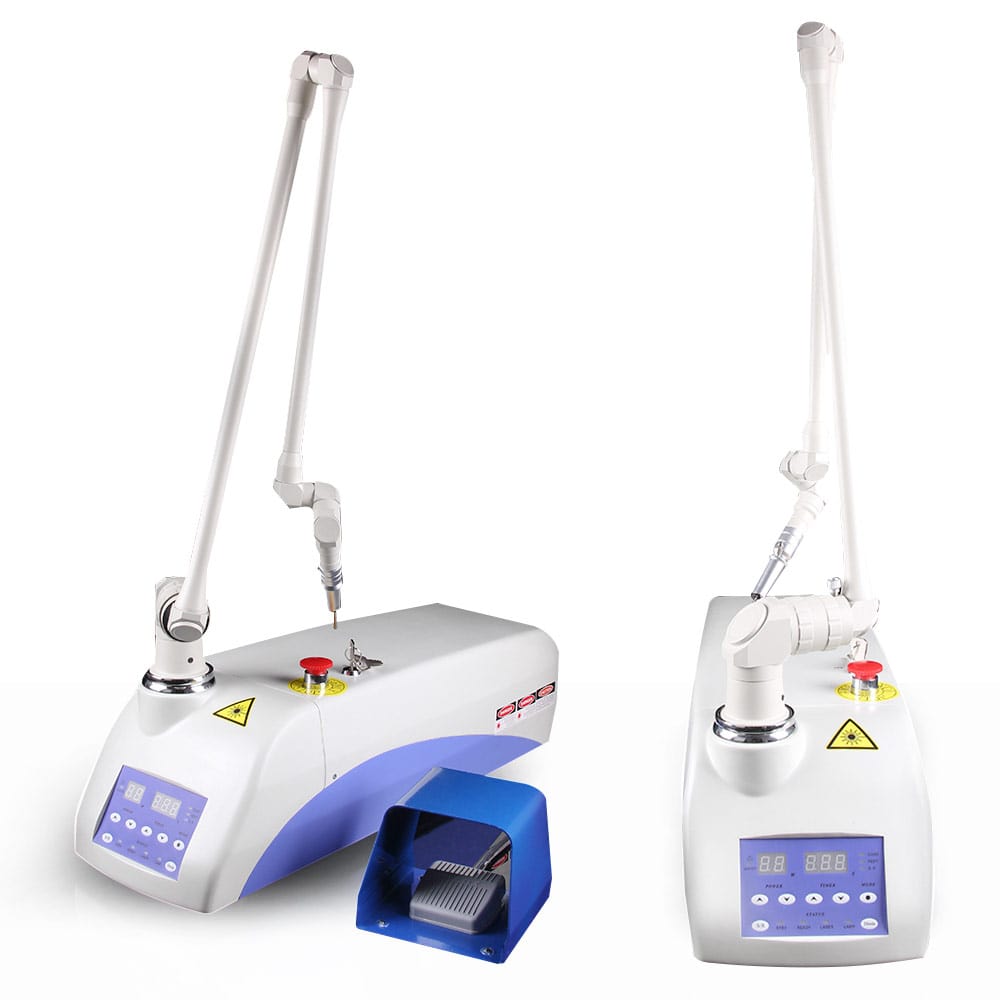

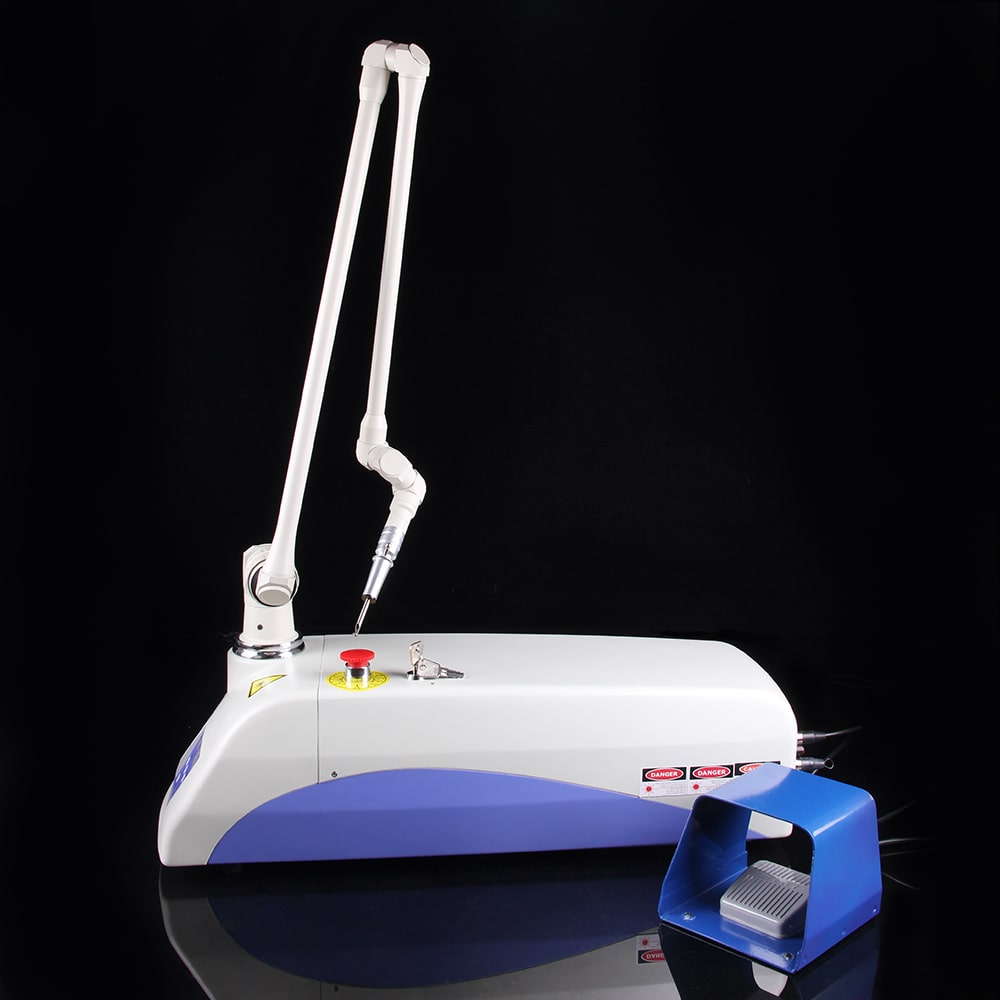

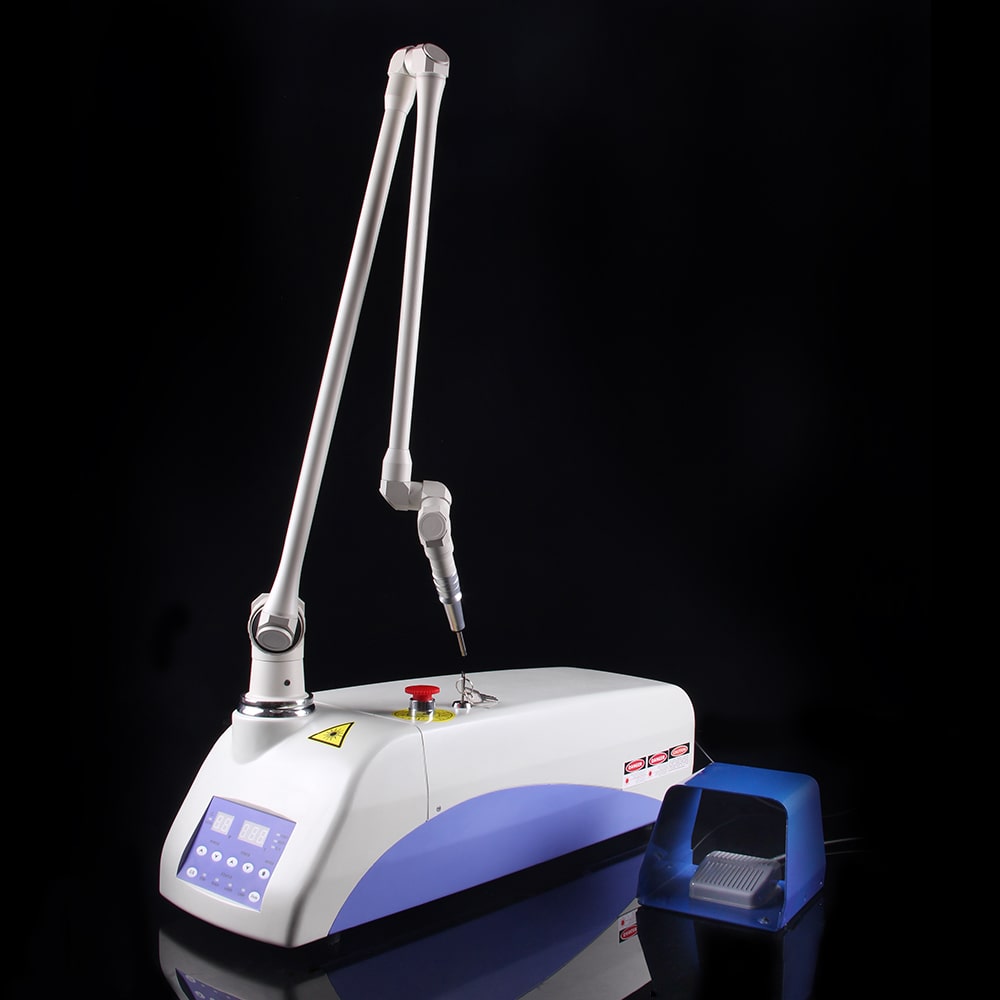

15w Fractional Cosmetic CO2 Laser Machine

How CO2 Fractional Laser Machine Works?

The spectral absorption of water provides the CO2 Surgical with the ability to coagulate, vaporize, or cut, tissue depending on the power density and the energy level applied by the surgeon. When the Co2 beam is defocused, the Co2 light vaporizes the soft tissue, and when the light is focused the Light can cut like scalpel.
The beam is a highly concentrated and powerful beam of light that interacts with tissue in some extraordinary ways. Surgeons use CO2 because of their outstanding precision. The beam is so accurate that an area less than one millimeter in diameter can be treated, while scarcely affecting surrounding tissue. Moreover, CO2 surgery is implemented in microsurgery and in rigid endoscopy, enabling surgical precision to a fraction of a millimeter

What CO2 Fractional Laser Machine Benefits?

• Compact and easy to operate
• Sealed-off CO2 technology
• CW, repeat pulse, and super pulse operation modes
• 7-joint spring-balanced articulated arm
• Pilot beam of 5mW Light
• Safety protection with alarming automatically

Applications

• General Surgery: haemangioma, adipoma, steatoma, rectal cancer
• Oral Surgery: epulis, buccal haemangioma, mucous cyst, lichen planum
• Otolaryngology: auricle vegetation, nose tumor and tumor of a paranasal sinus, benign tumour of the oropharynx, gular haemangioma, vocal polyp, laryngo-carcinoma, chronic pharyngitis, chronic rhinitis, chronic laryngitis
• Urology: meatus urinary condyloma, redundant prepuce, caruncle of urethra, polyp of penis
• Gynecology: myoma of the uterus, cervical erosion, cervical polyp, vagina condyloma
• Dermatology: wart, common wart, venereal wart, herpes labial, herpes zoster, nevus pigment, cutaneous malignant tumor
• Cosmetology: dispel wrinkle tache, stains of face nevus, vegetation and underarm odor

Accessories

• 1* Operator's manual and service manual
• 1*0Articulated arm
• 1* Power cable
• 1* Footswitch
• 2* Interlock key
• 2* Fuse (spare parts)
• (Connecting wires recommended: 0.15*23)

Specification

• Machine type DWJPC015-A CO2 (sealed off)
• Wavelengths 10.6microns
• Mode Structure TEM00
• Power to tissue 15W
• Co2 Light operation modes Repeat. CW. Super.
• Super pulse peak power 100W
• Aiming beam 3mW Light
• Beam delivery system 7-joint spring-balanced articulated arm
• Working radius 110cm
• Cooling system Water closed-cycle
• Control system Microprocessor control
• Warranty 1year
• Electrical 230VAC/50Hz or 120VAC/60Hz
• Package dimensions (cm) 102x37x47cm
• Gross weight by carton (kg) 28kg
